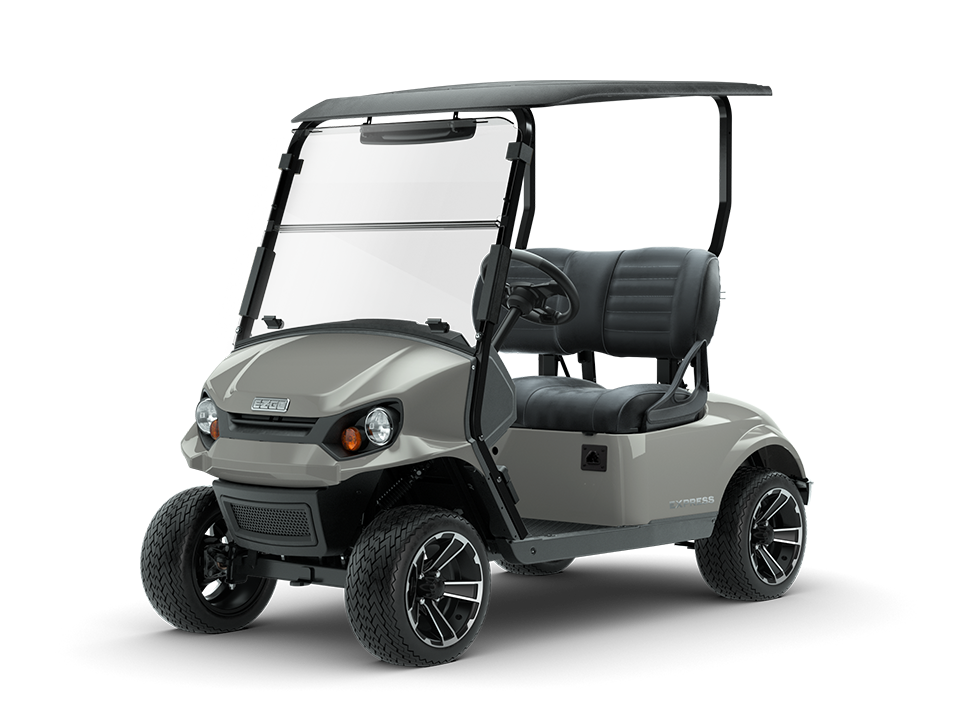

Express 2 Connect

The E-Z-GO® Express 2 Connect sets new standards in mobility and connectivity, combined with modern design and intuitive technology. Where will the Express 2 Connect take you on your journey? Are you ready to travel smarter?

Black

Dimensions +

• Overall Length: 97 inches (246 cm)
• Overall Width: 49.5 inches (124 cm)
• Overall Height (without roof): 51 inches (129 cm)
• Overall Height (with roof): 74.4 inches (189 cm)
• Wheelbase: 67 inches (170 cm)
• Front Track: 38.5 inches (98 cm)
• Rear Track: 38.5 inches (98 cm)
• Ground Clearance at Differential: 5.25 inches (13.3 cm)

Power +

• Power Source: 56.7 V
• Motor Type: 56 Volt AC
• Power (HP): 11.7 HP (8.7 kW) peak output
• Electrical System: 48V primary, 12V auxiliary
• Batteries (Quantity/Type): Single 56.7 V Li-Ion composite module (standard configuration)
• Battery Charger: 56.7 V
• Key or Pedal Start: Pedal start
• Speed Controller: 235 Ampere AC
• Drivetrain: Motor shaft direct drive
• Axle Drive: Coupling type differential lock with helical gear (only ELiTE)
• Gear Selection: Dashboard-mounted – Forward, Neutral, Reverse
• Rear Axle Ratio: 16.99:1 (Forward)

Performance +

• Seating Capacity: 2 persons
• Curb Weight: 676 lb (307 kg) (without batteries)
• Operating Weight: 720 lb (327 kg)
• Vehicle Payload: 500 lb (227 kg)
• Turning Circle: 22 ft (6.7 m)
• Speed (flat terrain): Up to 19 mph ± 0.5 mph (30.6 km/h ± 0.8 km/h)

Steering & Suspension +

• Steering: Self-centering rack and pinion steering
• Suspension (Front & Rear): Leaf springs with hydraulic shock absorbers
• Brakes: Mechanical, self-adjusting drum brakes on the rear wheels
• Parking Brake: Automatic electromagnetic brake (only ELiTE)
• Tires: Hole-N-One tires on 12-inch Rogue alloy wheels (Connect package)
