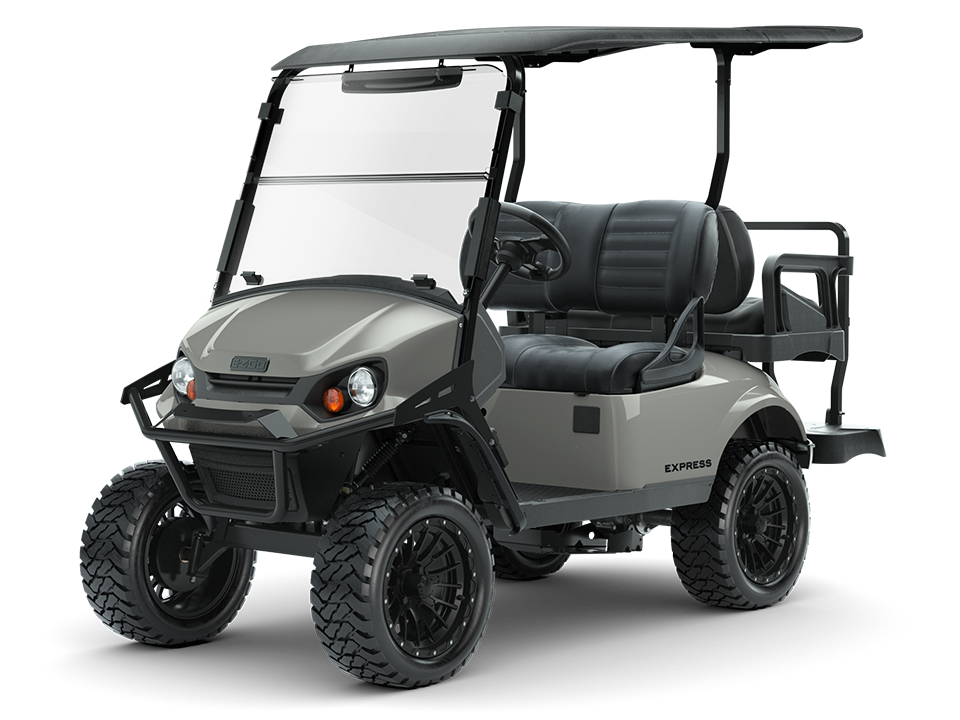

Express 4 Explorer

The E-Z-GO® Express 4 Explorer combines powerful performance, innovative design, and seating for four, enabling you to tackle any adventure in style. Whether for off-road expeditions or leisurely outings – with the Express 4 Explorer, the possibilities are endless. Where will your spirit of discovery take you?

Black

Dimensions +

• Overall Length: 116.5 inches (296 cm)
• Overall Width: 48.75 inches (124 cm)
• Overall Height (without roof): 48.75 inches (124 cm) (to the steering wheel)
• Overall Height (with roof): 72.25 inches (184 cm)
• Wheelbase: 65.25 inches (166 cm)
• Front Track: 35 inches (88.9 cm)
• Rear Track: 38.88 inches (98.7 cm)
• Ground Clearance at Differential: 5.63 inches (13 cm)

Power +

• Power Source: 56.7 V
• Motor Type: 56 Volt AC
• Power (kW): 11.7 HP (8.7 kW) peak output
• Electrical System: 56 Volt starter/generator, solid-state controller
• Batteries (Quantity/Type): Single 56 V Li-Ion (standard configuration)
• Battery Charger: 56 VDC, 120/230 VAC, UL/CSA, CE
• Key or Pedal Start: Pedal start
• Speed Controller: 235 Ampere AC
• Drivetrain: Motor shaft direct drive
• Axle Drive: Coupling type differential lock with helical gear (only ELiTE)
• Gear Selection: Dashboard-mounted – Forward, Neutral, Reverse
• Rear Axle Ratio: 17:1 (Forward)

Performance +

• Seating Capacity: 4 persons
• Curb Weight: 880 lb (399 kg) (without batteries)
• Operating Weight: 924 lb (419 kg)
• Vehicle Payload: 800 lb (360 kg)
• Turning Circle: 19 ft (5.79 m)
• Speed (on flat terrain): Up to 19 mph ± 0.5 mph (Up to 30.6 km/h ± 0.8 km/h)

Steering & Suspension +

• Steering: Self-centering rack and pinion steering
• Suspension: Leaf springs with hydraulic shock absorbers
• Service Brake: Mechanical, self-adjusting drum brakes on the rear wheels
• Parking Brake: Automatic electromagnetic brake (only ELiTE)
• Tires: Standard – Hole-N-One tires on 12-inch Rogue alloy wheels (Connect package), Paramount-SBR tires on 14-inch FTV alloy wheels (Cruiser package)
